Capping Machines Details
We offer various types of more than 13 bottle capping machines for packaging Solutions in order to be used for different capping applications such as food & beverages, pharmaceutical, pesticides, distilleries, cosmetic, toiletries, personal care, chemicals, oil etc.
We have a broad selection of both semi-auto/automatic capping machine in which various capping systems such as servo based, pick n place, snap/press fit, screw, ROPP, Aluminum flip-top, rubber stopper, inner plug etc. Depending on cap type. Thecapping machine can operated from a touch screen and is capable of storing over multiple recipes
We provide both stand-alone bottle capping machines & cappers integrated into a mono-block as well as stand alone in a complete line. Our machines can often be supplied with hoppers & cap sorters
Specifications
-
1 head to 20 head capping system or more
-
Output speed up to max400bpm or more
-
Fast product changeovers
-
Integrated fault alarms
-
Adjustable conveyor guide rails to accommodate with different products
-
Accurate and repeatable performance
-
All contact parts are SS304, Aluminum, and Delrin etc.MS frame structure with SS cladding
-
Optionalcolor touch screen with plc for various error message and control system
-
No bottle no capping system
-
Optional Motorized height adjustment of capping heads
-
Cap Feeder Auto On/Off system preventing cap damage
-
Clutch System in feed worm to avoid bottle damage during operation
-
Smooth and accurate container handling
-
Machine auto on / off system, and it will start automatically once bottle enter to the in feed conveyor and stop if there is no bottle.
-
Optional fully interlocked safety cabinet.
-
Synchronized variable speed control.
-
Complete with one set of bottle change parts.
List of 13 Capping Machines
| Sr. Number | Various Capping Machines | Application Industry |
|---|---|---|
| 1 | 4 Head P&P Capping Machine | Pharmaceutical, Cosmetic, Toiletries, Chemical |
| 2 | 8 Head P&P Capping Machine | Chemical, Pharmaceutical, Cosmetic, Toiletries |
| 3 | 12 Head P&P Capping Machine | Pharmaceutical, Cosmetic, Toiletries, Chemical |

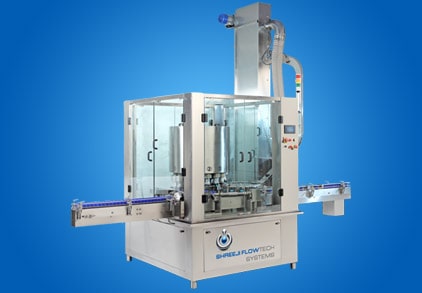

| 4 | 16 Head P&P Capping Machine | Pharmaceutical, Cosmetic, Toiletries, Chemical |
| 5 | 4 Head Screw Capping Machine | Toiletries, Chemical, Pharmaceutical, Cosmetic |
| 6 | 4 Head ROPP Capping Machine | Pharmaceutical, Cosmetic, Chemical |
| 7 | 8 Head ROPP Capping Machine | Pharmaceutical, Cosmetic, Chemical |
| 8 | 8 Head Plugging & 8 Head ROPP Capping Machine | Pharmaceutical |
| 9 | 8 Head Vial Cap Sealing Machine | Pharma Industry |
| 10 | 12 Head Vial Cap Sealing Machine | Pharmaceutical Industry |
| 11 | 8 Head Cap Pressing Machine | Cosmetic, Pharmaceutical, Toiletries, Chemical |
| 12 | Automatic Cup Placement Machine | Cosmetic, Toiletries, Pharmaceutical, Chemical |
| 13 | Single Head Capping Machine | Pharmaceutical, Cosmetic, Toiletries, Chemical |
- Servo Pick n Place Screw/Snap Fit Capping Machine
The servo capper applies screw caps to containers with constant torque using a controlled servo motor mounted on each pneumatically operated capping head. This system requires capping torque set by numerical input into the control panel (easy to change when switching caps or containers). The servo drive monitors parameters of each capping head making it easy to detect abnormal torqueing.
- Pick n Place Screw/Snap Fit type Capping Machine
Specially designed pneumatically operated gripper type pick n place with torque adjustment rotary plastic screw capping machine suitable for screw or snap/press fit caps.
The magnetic or liner clutch torque head ensures that the correct application torque is applied each time. Torque is adjusted by increasing or decreasing the distance between the magnetic or liner plates inside.
Bottles entering the machine are transferred to the turret star wheel where they are placed in the star wheel pockets to precisely align them underneath the capping heads. The rotating head with the cap descends onto the bottle and applies the cap to the desired torque.
- Regular Screw type Capping Machine
-
The screw capper applies screw caps to containers with constant rotation head mounted on each capping head. Bottle itself picks cap from the suite and after picking cap Bottles enters in the machine and transferred to the turret star wheel where they are placed in the star wheel pockets to precisely align them underneath the capping heads.
- ROPP Capping Machine
The big advantage of a ROPP & Aluminum flip-top capper is that it is sealing the product at the same time it is providing tamper evident security. The neck and threads of the bottle must also be hard enough to withstand the pressure required to form threads such as glass or hard plastic.
